Drill EDM
High Speed Drilling CNC EDM

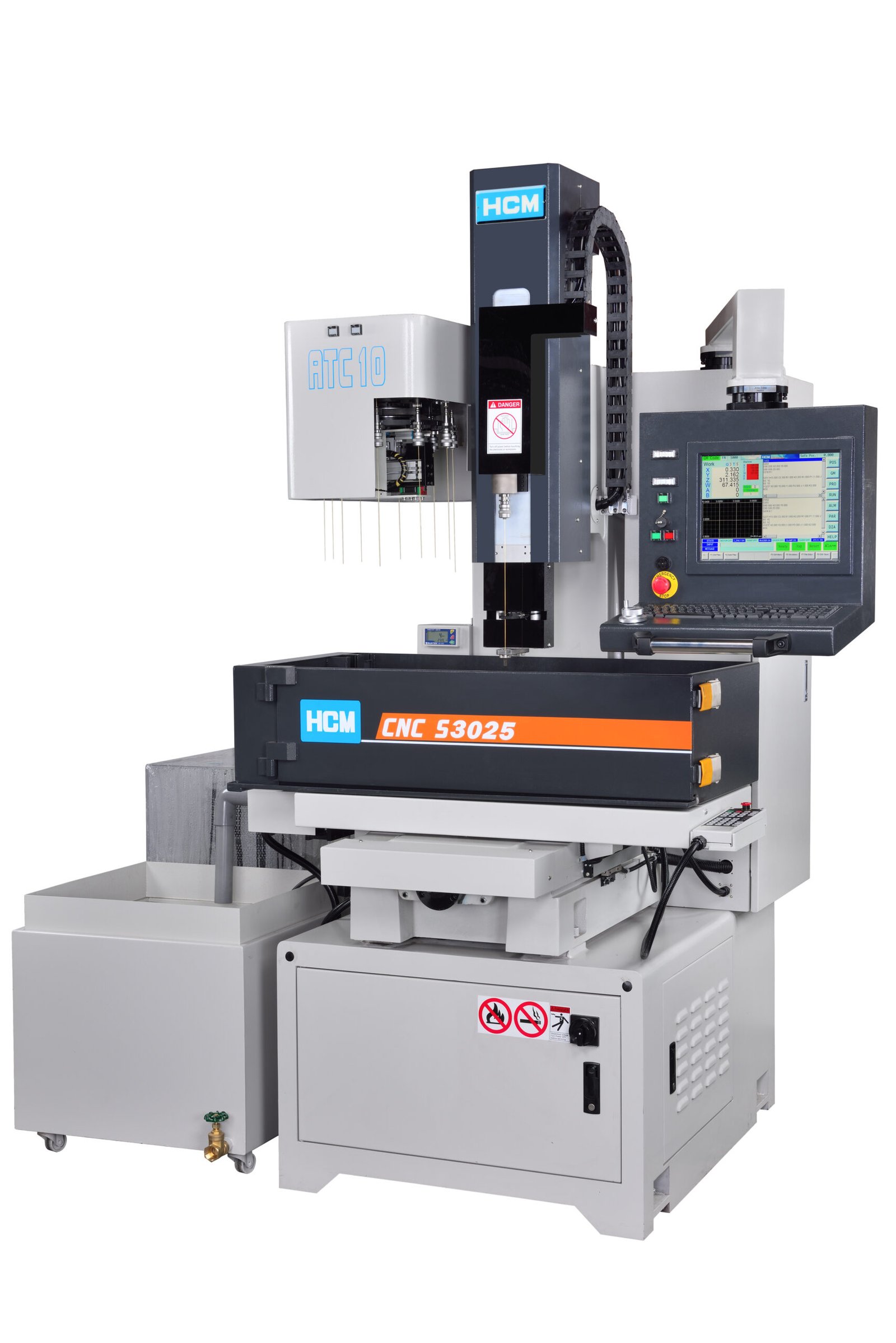

CNC S3025
| Parameter | Specification |
|---|---|
|
XYZ axes travel |
300x250x350mm (11.8″x9.84″x13.78″) |
|
W axis travel |
350mm (13.78″) |
|
Work Table Size |
600x300mm (23.6″x11.8″) |
|
Max. Workpiece Size |
850x530x300mm (33.4″x20.8″x11.8″) |
|
Max. Workpiece Weight |
400kg |
|
Distance from table to guide plate |
50~400mm (1.96″x15.74″) |
|
Machine dimensions |
1300x1600x2600 (51.18″x62.99″x102.36″) |
|
Machine net weight |
1100kg |
|
Electrode diameter |
0.2~3.0mm |
|
Dielectric fluid |
pure water ( dielectric oil for 0.2mm or below) |
|
Filtration |
Paper filter
Controlling axes XYZW |
|
Monitor |
15″ LCD screen |
|
Input/output unit |
LAN/USB |
|
Min. Setting Unit |
0.001mm |
|
Min. Moving Unit |
0.001mm |
|
Graphical display |
2D |

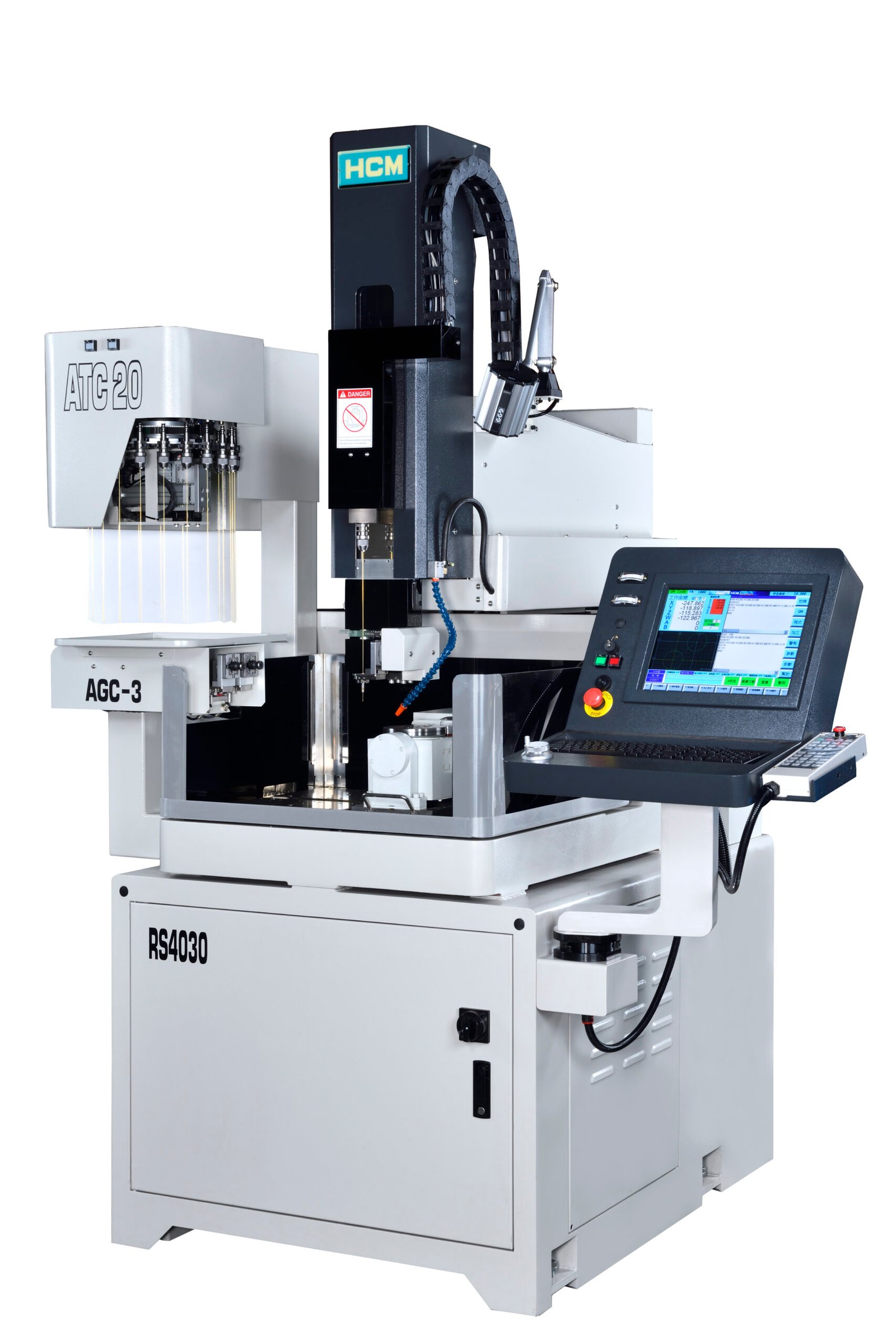

CNC RS4030
| Parameter | Specification |
|---|---|
|
XYZ axes travel |
400x300x350mm |
|
W axis travel |
350mm (13.77″) |
|
Work Table Size |
600x450mm |
|
Max. Workpiece Size |
800x700x320mm |
|
Max. Workpiece Weight |
950kg |
|
Distance from table to guide plate |
50~400mm |
|
Machine dimensions |
2000x2550x2150(78.74″x100.39″x84.64″) |
|
Machine net weight |
1650kg |
|
Electrode diameter |
0.2~3.0mm |
|
Dielectric fluid |
pure water ( dielectric oil for 0.2mm or below) |
|
Filtration |
Paper filter
Controlling axes XYZW |
|
Monitor |
15″ LCD screen |
|
Input/output unit |
LAN/USB |
|
Min. Setting Unit |
0.001mm |
|
Min. Moving Unit |
0.001mm |
|
Graphical display |
2D |
CNC S4030
| Parameter | Specification |
|---|---|
|
XYZ axes travel |
400x300x350mm (15.7″x11.8″x13.77″) |
|
W axis travel |
350mm (13.77″) |
|
Work Table Size |
650x400mm (25.59″x15.7″) |
|
Max. Workpiece Size |
1000x600x300mm (39.3″x23.6″x11.8″) |
|
Max. Workpiece Weight |
600kg |
|
Distance from table to guide plate |
50~400mm (1.96″~15.74″) |
|
Machine dimensions |
1700x1950x2600 (66.92″x76.77″x102.36″) |
|
Machine net weight |
1500kg |
|
Electrode diameter |
0.2~3.0mm |
|
Dielectric fluid |
pure water ( dielectric oil for 0.2mm or below) |
|
Filtration |
Paper filter
Controlling axes XYZW |
|
Monitor |
15″ LCD screen |
|
Input/output unit |
LAN/USB |
|
Min. Setting Unit |
0.001mm |
|
Min. Moving Unit |
0.001mm |
|
Graphical display |
2D |
CNC S5040
| Parameter | Specification |
|---|---|
|
XYZ axes travel |
500x400x350mm (19.6″x15.7″x13.7″) |
|
W axis travel |
350mm (13.7″) |
|
Work Table Size |
800x450mm (31.4″x17.7″) |
|
Max. Workpiece Size |
1200x700x300mm (47.2″x27.5″x11.8″) |
|
Max. Workpiece Weight |
1000kg |
|
Distance from table to guide plate |
50~400mm (1.96″x15.74″) |
|
Machine dimensions |
1800x2050x2600 (70.86”x80.7”x102.36”) |
|
Machine net weight |
1600kg |
|
Electrode diameter |
0.2~3.0mm |
|
Dielectric fluid |
pure water ( dielectric oil for 0.2mm or below) |
|
Filtration |
Paper filter
Controlling axes XYZW |
|
Monitor |
15″ LCD screen |
|
Input/output unit |
LAN/USB |
|
Min. Setting Unit |
0.001mm |
|
Min. Moving Unit |
0.001mm |
|
Graphical display |
2D |
